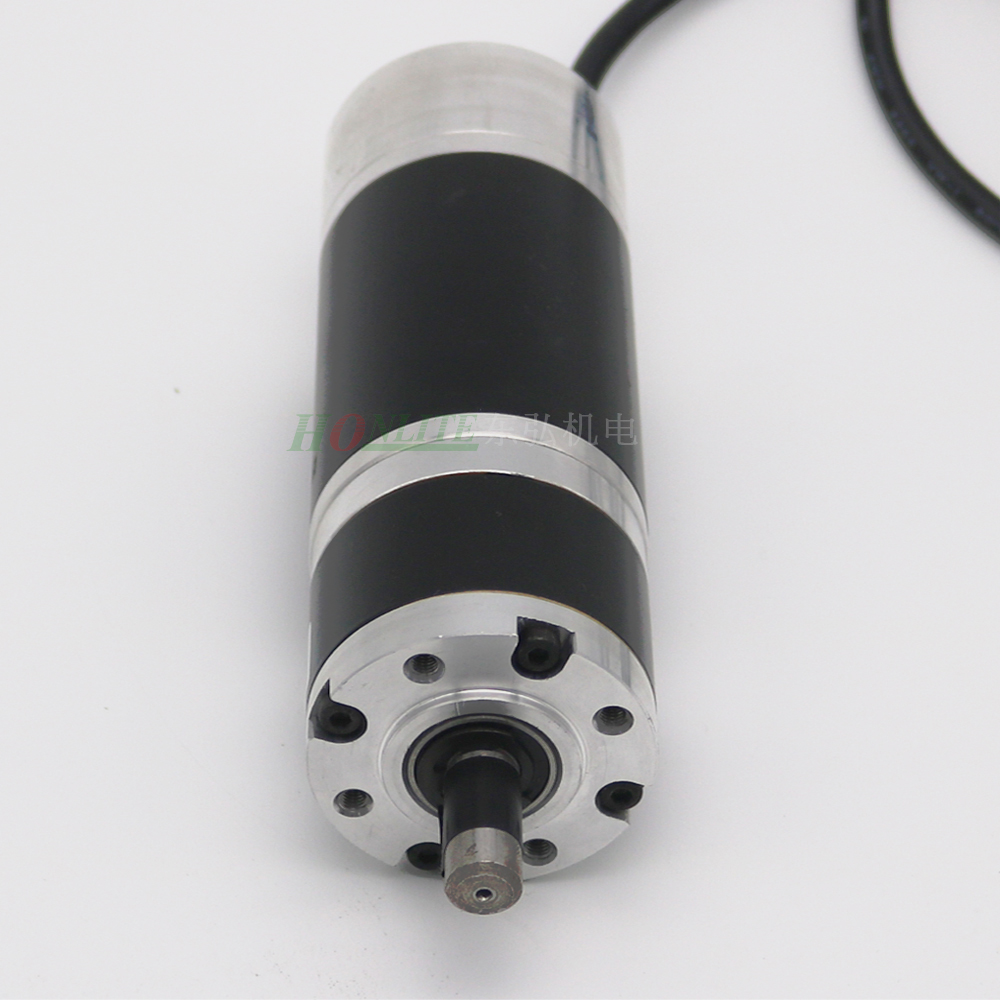

This BLDC57 brushless gear motor can be applied to the wing gate. The motor is mainly composed of a planetary gear reducer and a brushless DC motor, with an outer diameter of 57mm and a length of 177mm. Post encoder, the control of the brushless gear motor requires position information feedback , There must be a position sensor or a position sensorless estimation technology to form a self-controlling speed control system. At present, this is a sensed deceleration brushless motor. During control, the current of each phase is controlled into a square wave, and the output voltage of the inverter is controlled according to the PWM method of the brushed DC motor.
Voltage: 24V
No load speed of single motor: 2900 ± 10% rpm
Single motor load speed: 1900 ± 10% rpm
Single motor torque: 0.5nm
Reducer torque: 7.5nm
Power: 100W
Reduction ratio: 1:18.8 (customizable)
Drive: external
Configurable encoder
